FBS Horizontal Firetube Boiler (1t/h to 6t/h)

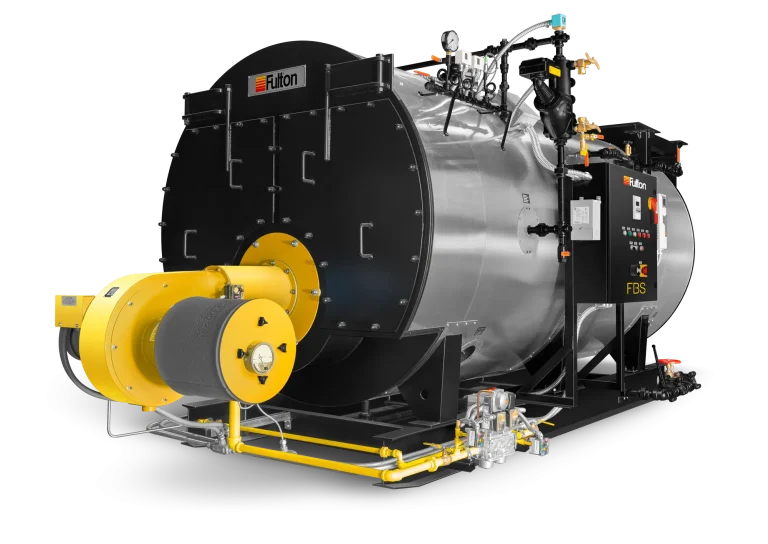

FBS Horizontal Firetube Boiler

FBS boilers furnace located well below the water level gives a large safety margin.
Water probe immersing in the boiler pressure vessel avoids false water level and gives the boiler a compact and clean look.

Three-pass wet-back, corrugated furnace design, large furnace heating surface, sufficient heat transfer

Good load change tolerance, high efficiency

Large steam space, high steam quality

Fully automated control system has BAS connection port

Enquire Now


  • Lowest Cost of Ownership
  • Best-in-Class Efficiency
  • Capable of Meeting All Emission Standards
  • Trim Options for Virtually any User Requirement
  • Customizable Controls
  • Burner Packages for Multiple Fuel Types


  • Models: FB-S1-1.0 TO FB-S6-1.25
  • Output: 1t/h to 6t/h
  • Standard MWP: 1.0MPa, 1.25MPa, 1.6MPa, 2.5MPa,
  • Fule Option: Light oil, Heavy oil, Natural gas, Town gas and Dual-fuel

Document Download

Access and Download the product documentation quickly and easily.

Quality and Performance

Tomlinson Energy Service NSW, VIC and SA have a dedicated management system with a focus on Quality, Safety and Environmental aspects of all our operations.

Accredited to ISO 45001:2018, ISO 14001:2015 and ISO 9001:2015.
